Original MEAN WELL packing, 0.27Kg; 48pcs/14Kg/1.02CUFT
Within 1 day
Original MEAN WELL!

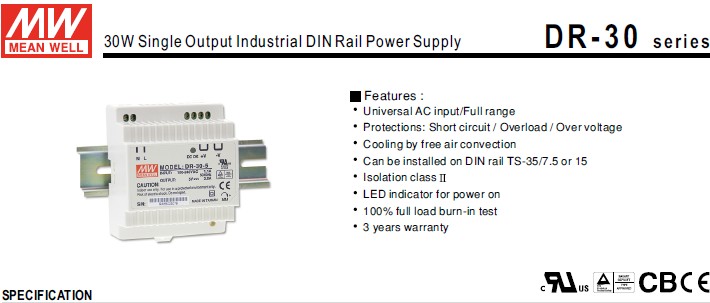

MEAN WELL original 24vdc Industrial Din Rail Power Supply. Hope you like it.
Universal AC input/Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Isolation Class 2
No load power consumption<0.5W
100% full load burn-in test
3 years warranty
0 ~ 1.5A
RIPPLE & NOISE (max.) Note.2
VOLTAGE ADJ. RANGE Note.7
21.6 ~ 26.4V
VOLTAGE TOLERANCE Note.3
LOAD REGULATION Note.8
SETUP, RISE TIME Note.9
100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
100ms/230VAC 21ms/115VAC at full load
VOLTAGE RANGE Note.5
85 ~ 264VAC 120 ~ 370VDC
47 ~ 63Hz
AC CURRENT (Typ.)
COLD START 15A/115VAC 30A/230VAC
105 ~ 160% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
-20 ~ +60¢J (Refer to "Derating Curve")
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85¢J, 10 ~ 95% RH
±0.03%/°C(0 ~ 50°C)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL60950-1, TUV EN60950-1 approved, Design refer to EN50178
I/P-O/P:>100M Ohms / 500VDC / 25¢J/ 70% RH
Compliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
441.5K hrs min. MIL-HDBK-217F (25°C)
Storage and Packing
MEAN WELL Other Series
Why Choose Us ???
A Fast Delivery + Satisfied Customer Service Is Our NO.1 Priority!
1. Our goal is to provide you the right product and make you satisfied, so please don’t hesitate to contact us via tel or mail.
2. We shall find for you the cheapest shipping term and show you the freight and shipping time. Regarding to the urgent order, a quickest shipping term and freight will be advised to you for consideration.
3. The stock info will be informed before your order, to make everything under control.
4. Price could be negotiated for more and large quantity.
Shipping & Duties
Usually, shipping will be arranged within 2-3 Days upon payment or deposit, from Monday to Saturday only.
To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C, WESTERN UNION, PAYPAL or through Visa, MasterCardvia Ali Express Escrow. More payment options will be added in the near future.
All of the products we sell are with a certain time warranty, during the warranty, anything wrong with it, like no working an unstable output voltage or current, damaged, my corporation will be responsible to fix it well for free and re-send it to the clients, But, the delivery cost should be paid by purchaser himself.
We will be very glad to provide the assistance during your installation and application at any time.
Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us.
We will always be here and try our best to provide you our best service !
