Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: MEAN WELL
  • Model Number: DR-15-12
  • Output Power: 15W
  • Output Type: Single
  • Input Voltage: 85-264VAC
  • Output Voltage: 12V
  • Output Frequency: 0Hz
  • Output Current: 0--1.25A
  • Brand:: MEAN WELL (original)
  • Output mode:: 12V SingleOuput
  • Color:: Silver, Plastic case
  • Protections:: Short circuit/Over load/Over voltage/Over Temp
  • Size:: 25*93*56mm
  • Working temp:: -20C--60C
  • Cooling:: by free air vonvection, no fan
  • Efficiency:: 84%
  • Certificates:: Real UL/cUL,CE,CB,TUV
  • Din rail:: TS35/7.5 or 35

Packaging & Delivery

Packaging Details Original MEAN WELL packing,140pcs/15Kg/0.92CUFT
Delivery Time Within 1 day

Original MEAN WELL!



DR-15-12









Product Pictures



Here is the detailed info for my mean well 12v DIN rail switch power supply DR-15-12 . Hope you like it.















































Product Information

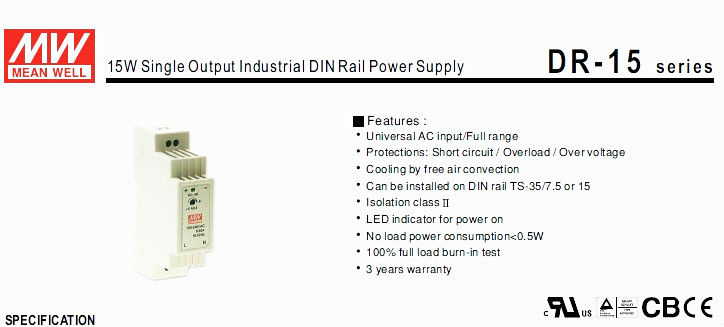

Features:

  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Isolation Class 2
  • No load power consumption<0.5W
  • 100% full load burn-in test
  • 3 years warranty

MODEL

DR-15-12

OUTPUT

DC VOLTAGE

12V

RATED CURRENT

1.25A

CURRENT RANGE

0 ~ 1.25A

RATED POWER

15W

RIPPLE & NOISE (max.) Note.2

120mVp-p

VOLTAGE ADJ. RANGE Note.7

10.8 ~ 13.2V

VOLTAGE TOLERANCE Note.3

±1.0%

LINE REGULATION

±1.0%

LOAD REGULATION Note.8

±1.0%

SETUP, RISE TIME Note.9

1000ms, 50ms/230VAC          1000ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

70ms/230VAC          16ms/115VAC at full load

INPUT

VOLTAGE RANGE Note.5

85 ~ 264VAC          120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

84%

AC CURRENT (Typ.)

0.88A/115VAC          0.48A/230VAC

INRUSH CURRENT(max.)

COLD START 35A/115VAC          65A/230VAC

PROTECTION

OVER CURRENT

105 ~ 160% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

13.8 ~ 16.2V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.

-20 ~ +60°C (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85 °C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C(0 ~ 50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY &

EMC

SAFETY STANDARDS

UL60950-1, TUV EN60950-1 approved, design refer to EN50178

WITHSTAND VOLTAGE

I/P-O/P:3KVAC

ISOLATION RESISTANCE

I/P-O/P:100M Ohms / 500VDC / 25 °C/ 70% RH

EMC EMISSION

Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A

OTHERS

MTBF

1172.3K hrs min.      MIL-HDBK-217F (25°C)

DIMENSION

25*93*56mm (W*H*D)

PACKING

0.1Kg; 140pcs/15Kg/0.92CUFT







Certificate







Storage and Packing

















Shipping













MEAN WELL Other Series













Why Choose Us ???



A Fast Delivery + Satisfied Customer Service Is Our NO.1 Priority!



1. Our goal is to provide you the right product and make you satisfied, so please don’t hesitate to contact us via tel or mail.

2. We shall find for you the cheapest shipping term and show you the freight and shipping time. Regarding to the urgent order, a quickest shipping term and freight will be advised to you for consideration.

3. The stock info will be informed before your order, to make everything under control.

4. Price could be negotiated for more and large quantity.



Shipping & Duties



Usually, shipping will be arranged within 2-3 Days upon payment or deposit, from Monday to Saturday only.



Payment



To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C, WESTERN UNION, PAYPAL or through Visa, MasterCard via Ali Express Escrow. More payment options will be added in the near future.



After-sale service



All of the products we sell are with a certain time warranty, during the warranty, anything wrong with it, like no working an unstable output voltage or current, damaged, my corporation will be responsible to fix it well for free and re-send it to the clients, But, the delivery cost should be paid by purchaser himself.

We will be very glad to provide the assistance during your installation and application at any time.



Contact Us



Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us.



We will always be here and try our best to provide you our best service !
